Mixer Power Amplifiers
Mixer Power Amplifiers

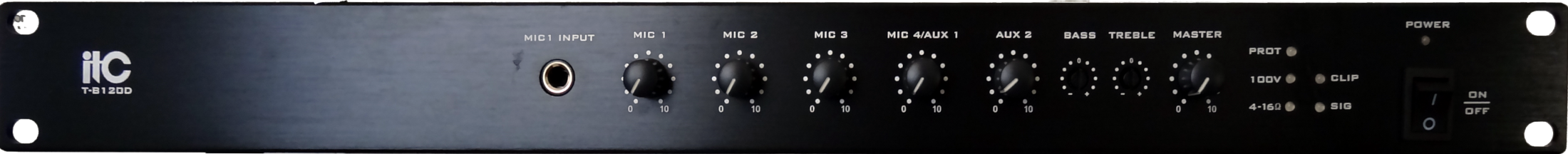

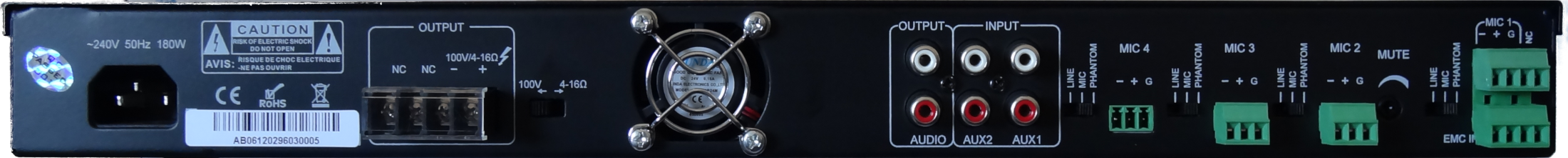

TB Series
Mixer Power amplifiers
- 4 Mic/Line + 2 Line inputs
- 60, 120, 240 watt @100V/100Ω 0r 4Ω
- 1ru Class D
TB Series
Mixer Power amplifiers
- 4 Mic/Line + 2 Line inputs
- 60, 120, 240 watt @100V/100Ω 0r 4Ω
- 1ru Class D
Frequency response | 80Hz - 15KHz +/- 3dB |
THD 1khz | <0.5% |
Input Impedance balanced | Mic 600Ω Line 10kΩ |
Signal to Noise Ratio | 66dB Mic 80dB Aux |
Damping factor | N'A |
Phantom Power | 48V |
Input sensitivity | Mic 5mV Aux 350mV |
Load | 100Ω or 4Ω |
Fans | Variable Side to rear |
Protection | Soft start, start, Overheat, Short circuit, Mute on/off |
Power | 220-240V + 24VDC |

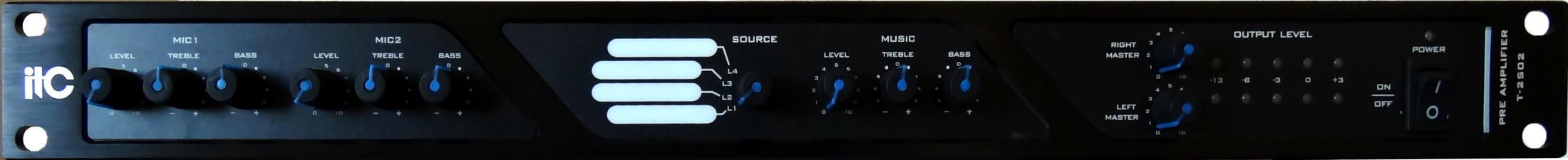

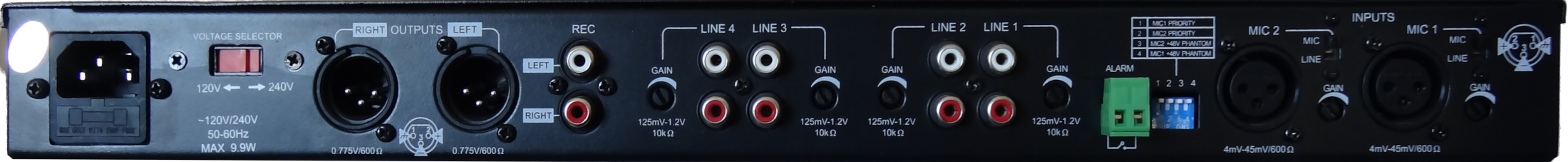

T Series
Mixer
- 2 Mic/Line + 4 Line inputs
- 2 Zone or stereo outputs
- Incependent tone controls
T Series
Mixer
- 2 Mic/Line + 4 Line inputs
- 2 Zone or stereo outputs
- Incependent tone controls
Frequency response | 20Hz - 20KHz +/- 1dB |
THD 1khz | |
Input Impedance balanced | Mix 600Ω Line 10kΩ |
Signal to Noise Ratio | Min input 65dB Line 85dB |
Damping factor | N'A |
Slew rate | N/A |
Input sensitivity | 0.775V |
Output | 1V/600Ω |
Fans | N/A |
Protection | N/A |
Phantom Power | 48V |
Power Suypply | 110V or 240V |
